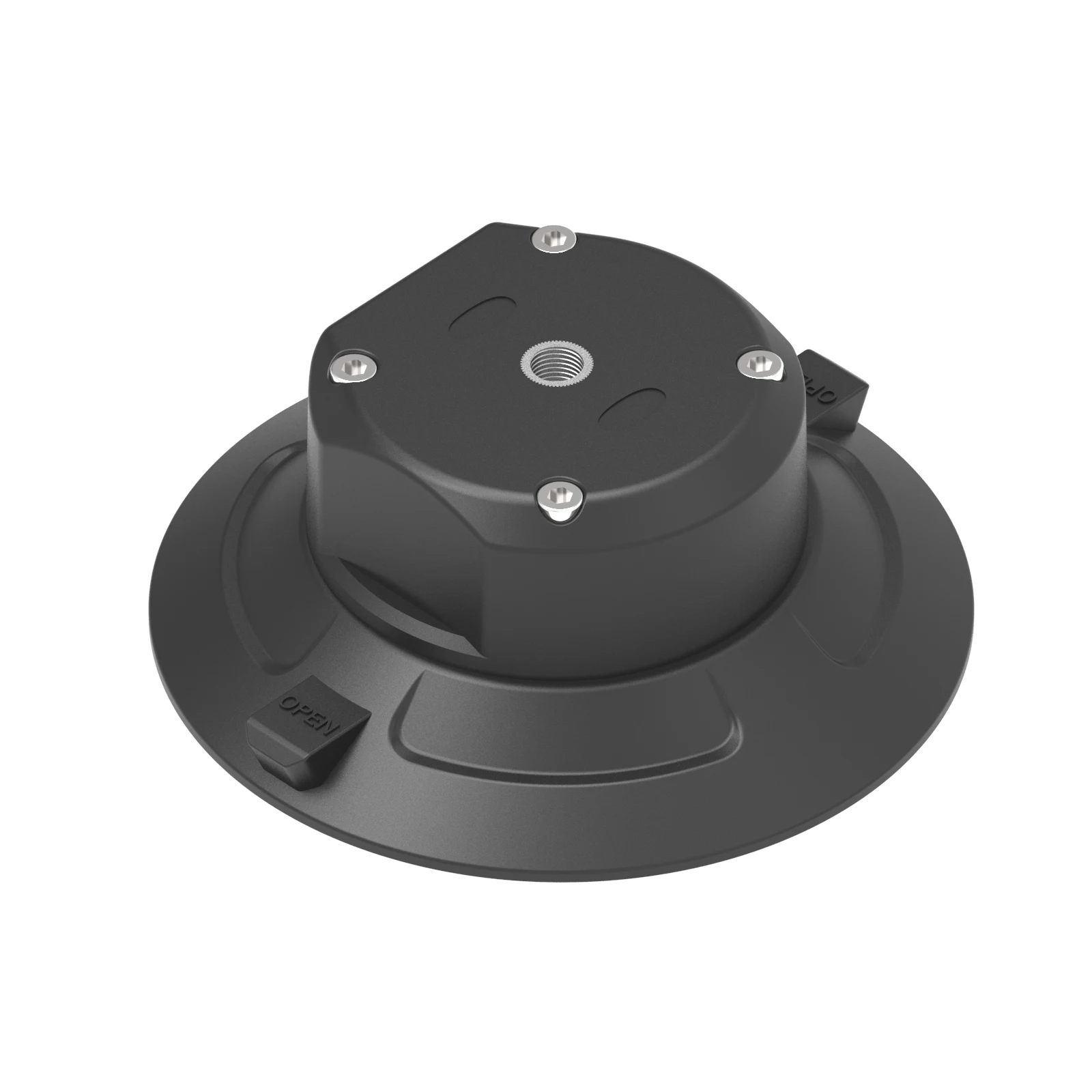

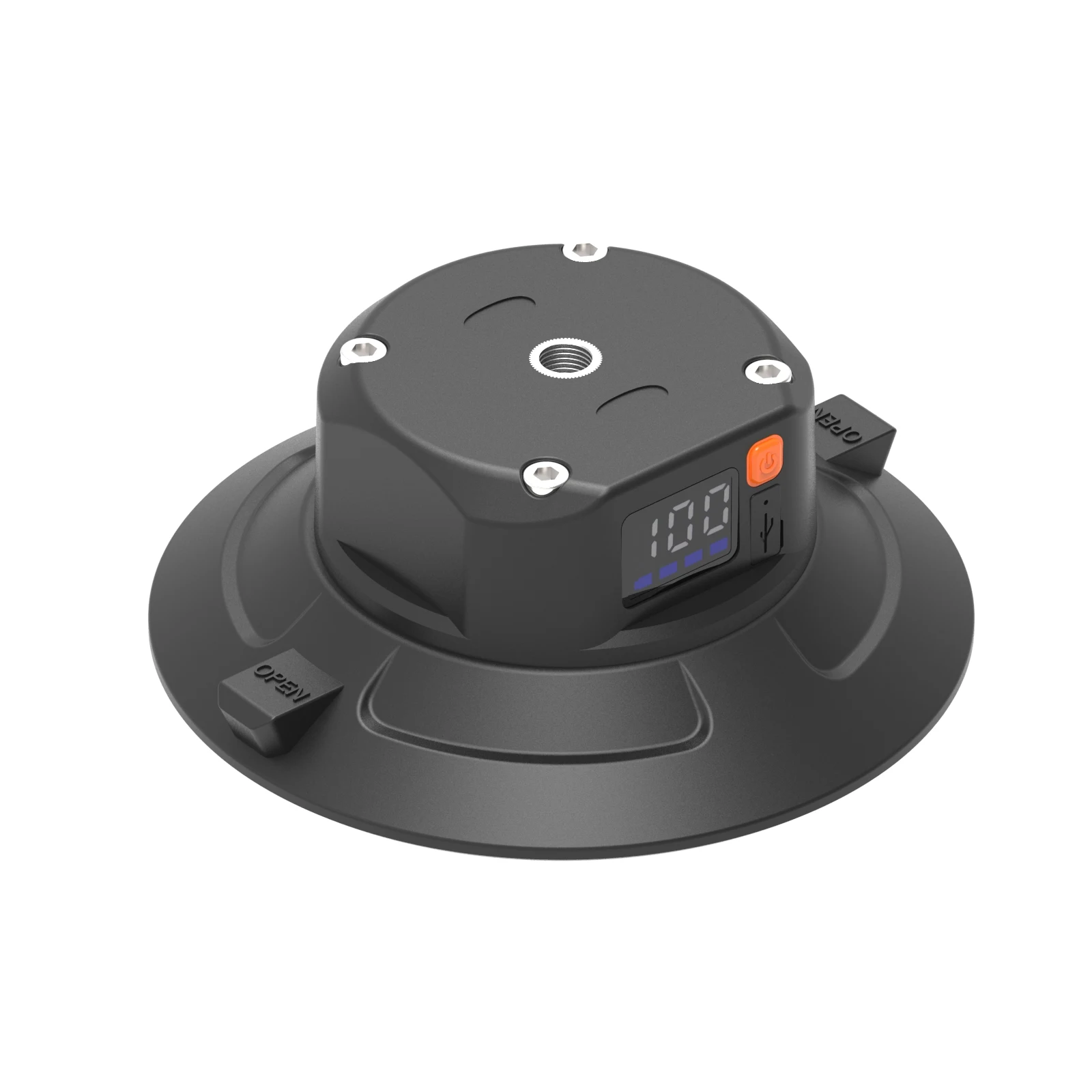

6in Electric Suction Cup Support for Vehicles

MC600-PN Ultra-Lightweight Smart Suction Cup | Zero-Mark Technology for High-Value Vehicles | Patented Auto-Compensation |198lbs (90KG) Max Load

Pad Dia. 6" [150mm]
Allowable Surface Flat
Rubber Type UV-Resistant
Certification CE / FCC / UKCA

Product Description

MC600-PN: The Ultralight Cinema Rigging Standard with Zero-Mark Technology

The MC600-PN redefines the balance between industrial-grade holding power and delicate surface protection. Engineered for cinematographers who demand speed without compromise, this system protects your most valuable assets—your camera and the vehicle it’s mounted on. Whether you are rigging a heavy cinema package or securing a shot on a rare supercar, the MC600-PN offers the industry’s highest safety-to-weight ratio.

01
Zero-Mark Technology & Ultralight Deployment

Traditional suction cups often leave tell-tale stress rings or chemical residue on vehicle clear coats. The MC600-PN eliminates this risk entirely.

  • The Engineering (For Pros):

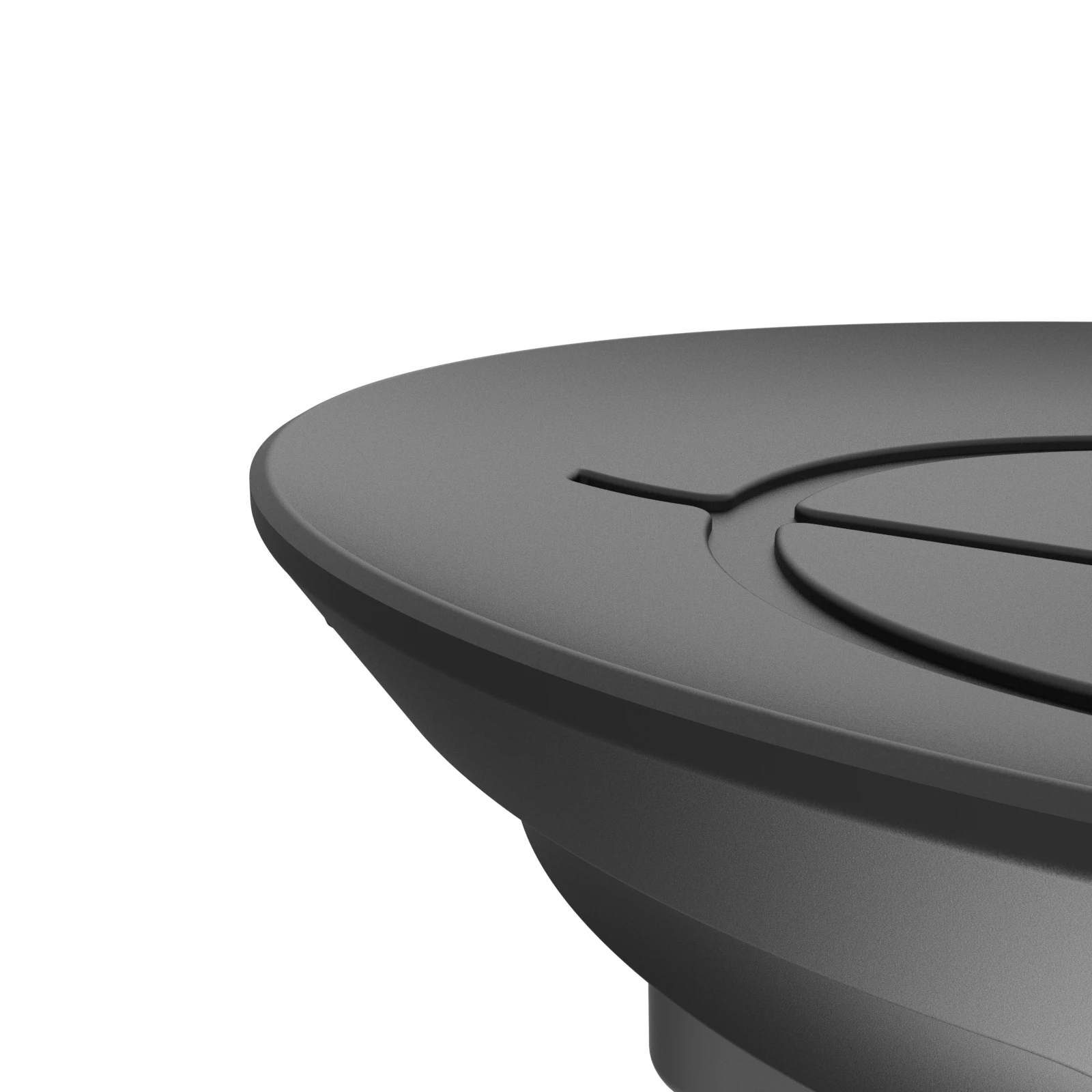

    We have removed the traditional sealing strip and replaced it with a curvature-optimized silicon interface. At just 513g (1.13 lbs)—the lightest 6-inch electronic cup in its class—it reduces the lever-arm weight on your rigging points while maintaining a vertical safe load of 70kg (154 lbs) and side load of 35kg.
  • The Benefit (For You):
    This means you can mount your equipment on high-value, rented, or vintage vehicles with absolute confidence. No marks, no paint damage, and no angry car owners. Plus, the ultra-light design makes it effortless to pack and carry.

See Professional Rigging in Action

Watch how professionals utilize suction cup systems for safe vehicle mounting.

*Video content courtesy of external creator via YouTube. Reference for safe rigging practices only.

02
Active Safety Protocol with 1000Hz Monitoring

Static suction cups can lose pressure silently. The MC600-PN is an “active” system that acts as a vigilant co-pilot for your gear.

  • The Engineering (For Pros): The patented vacuum system samples air pressure 1,000 times per second. If the seal drops below the safety threshold, the intelligent motor instantly activates the Zero-Leak Auto-Compensation protocol to restore full vacuum.

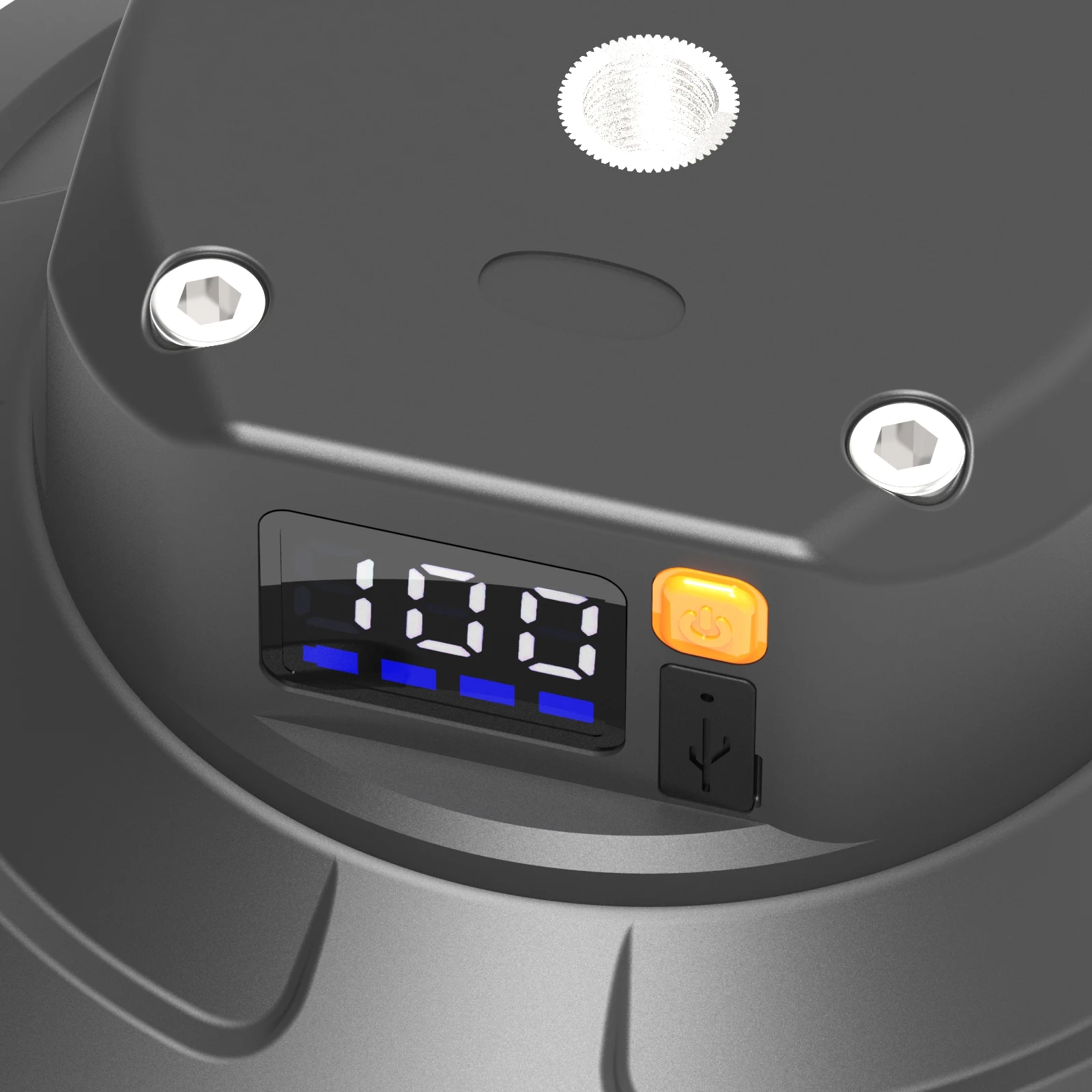

  • The Benefit (For You): This is your “set it and forget it” peace of mind. If the cup detects even a micro-leak, it fixes itself automatically before it becomes a problem. The simple 0-100 LED status screen lets you verify safety at a glance—no guesswork involved.

03
Environmental Durability & Professional Connectivity

Filmmaking rarely happens in perfect weather. The MC600-PN is built to survive the elements while integrating seamlessly into professional workflows.

  • The Engineering (For Pros): The chassis allows for direct 5V/1A USB-C power input for all-day shoots and features a standard 1/4″-20 mounting thread. The unit is rated with IP65 Ingress Protection, certifying it against dust ingress and low-pressure water jets from any direction.
  • The Benefit (For You): Rain, dust, and long shoot days are no longer showstoppers. You can power the unit with a simple power bank, and the weather-resistant design means you don’t have to panic if it starts to sprinkle.

Technical Specifications

Device Weight 513g (1.13 lbs)
Vertical Safe Load 70kg (154 lbs)
Side Load Capacity 35kg
Battery Life 1100mAh (supports USB-C external power)
Operating Temp -20°C to 45°C (-4°F to 113°F)
Safety Certification CE, FCC, UKCA

Frequently Asked Questions

Will this suction cup damage the paint on an expensive car?

No. The MC600-PN features our specific “Zero-Mark” technology. By removing the aggressive sealing strips found on industrial glass lifters and optimizing the suction curvature, we ensure the device leaves no stress marks, residue, or rings on vehicle clear coats.

What happens if the battery dies while I am shooting?

Safety is our priority. The device has a Dual Alarm protocol. It will trigger a visual and audible alarm when the battery drops below 20%. Furthermore, because the vacuum seal is mechanical, a dead battery does not mean instant detachment; it simply means the auto-pump will stop active compensation. We recommend using the USB-C port for continuous power on long shoots.

Is it difficult to set up for a beginner?

Not at all. The MC600-PN is designed with “anti-error” logic. Simply place it on a smooth, non-porous surface and turn it on. The motor automatically engages and achieves full lock in approximately 5 seconds. The LED screen will clearly read “100” when it is fully secure.
