Leading OEM factory for mini vacuum mounting suction cups. Durable, scratch-free suction pads for vehicle mounting. We support custom sizes and wholesale. Get a quote!

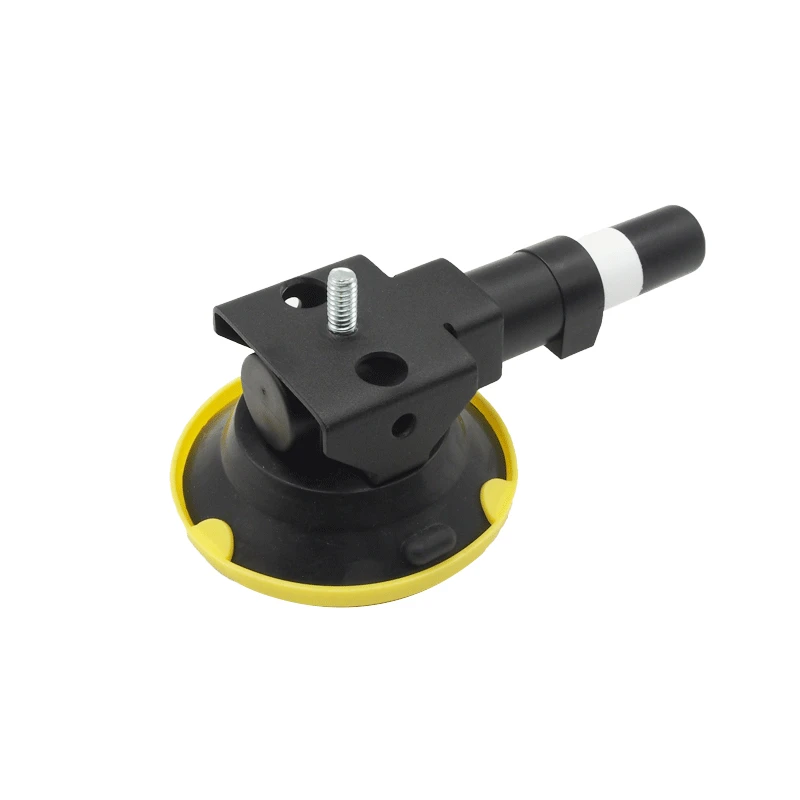

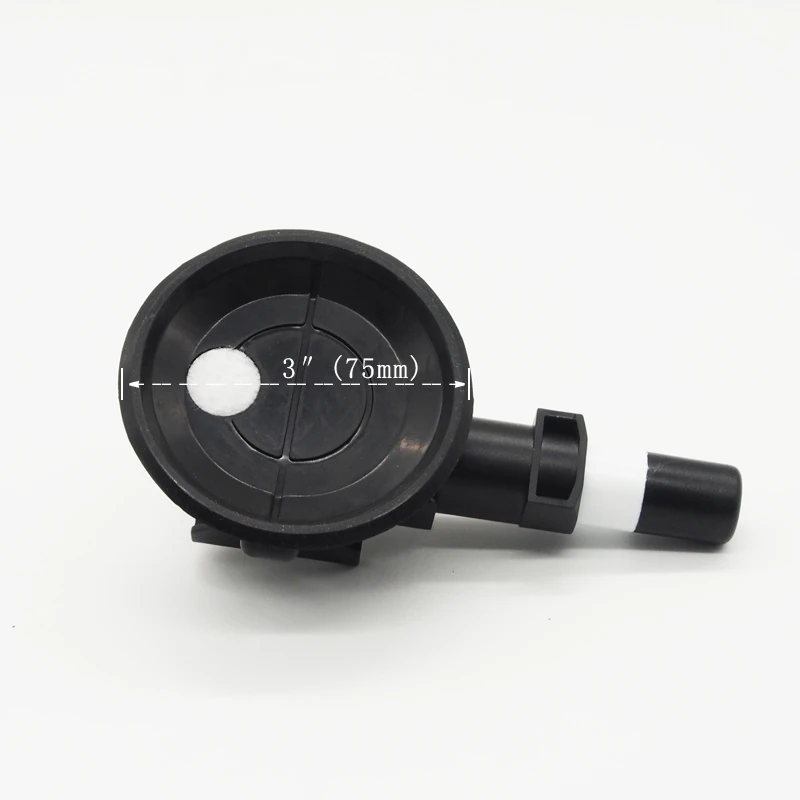

Designed for the rigging professional who demands industrial security without the permanent footprint. This 75mm (3-inch) system transforms any smooth, non-porous surface into a heavy-duty mounting point. By prioritizing a “Female-Only” dual-thread interface, it offers unmatched versatility for attaching magic arms, ball heads, and articulating accessories, acting as a reliable anchor in complex production environments.
Connectivity

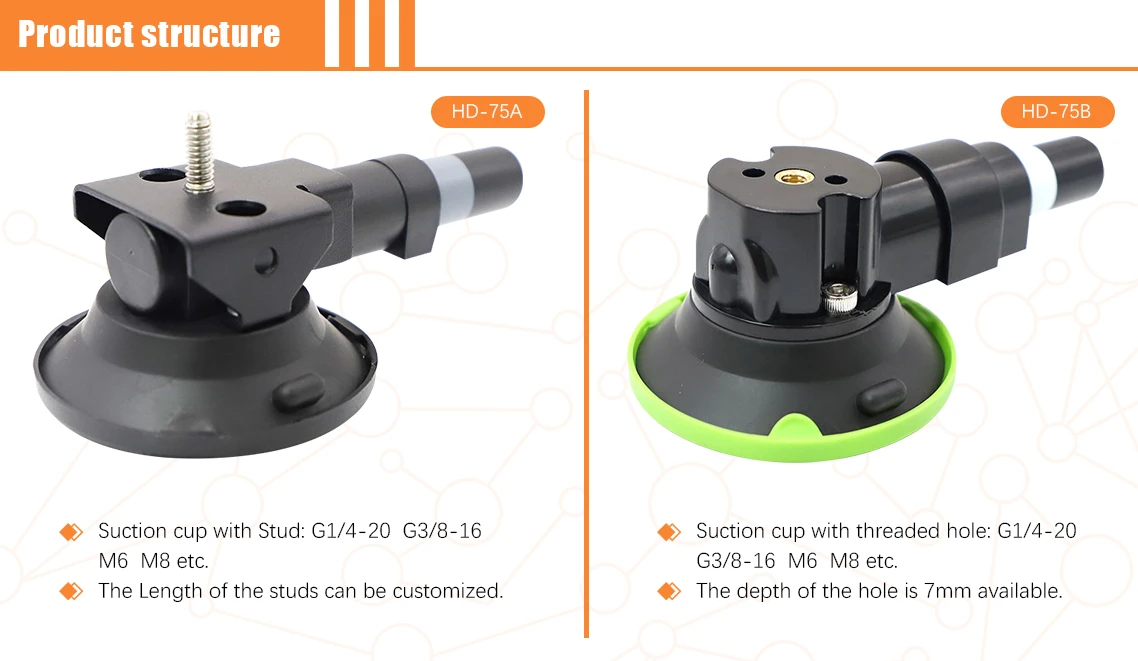

Technical Spec: The aluminum platform is CNC-machined with both 1/4″-20 and 3/8″-16 female receiving threads, conforming to the ISO 1222 industry standard for photographic equipment.
The Benefit: You aren’t locked into one screw size. Whether you are mounting a lightweight GoPro arm or a heavy-duty cinema monitor bracket, this single unit adapts instantly without needing fragile step-up adapter bushings.
Safety
Technical Spec: Features a spring-loaded plunger with a calibrated “Red-Line” indicator that provides visual feedback on vacuum pressure integrity (approx. -0.5 bar threshold).
The Benefit: It eliminates the “will it fall?” anxiety. You don’t have to guess if the seal is holding. If the red line is hidden, your gear is secure. If the line appears, you know exactly when to re-pump to prevent an accident.
Reliability
Technical Spec: Utilizes a concave, UV-resistant rubber pad engineered to operate in thermal extremes from -30°C to 60°C (-22°F to 140°F) while maintaining a Safe Working Load of 20kg (44 lbs).
The Benefit: Mount valuable equipment on client vehicles, museum glass, or delicate machinery with total confidence. The specialized rubber grips hard but releases cleanly, leaving zero residue, scratches, or chemical marks behind.
The vacuum pad features a concave design, which allows it to adhere securely to flat surfaces and surfaces with a gentle curvature (like a car hood or door panel). However, it is not suitable for highly contoured or sharp curves where the entire rim cannot make a perfect seal.
Yes. Because the system relies on atmospheric pressure, the red-line indicator may become less reliable at high altitudes (above 5,000 ft / 1,500m). In these environments, we recommend manually checking the pump firmness more frequently, even if the red line is not visible.
Absolutely not. While the 20kg Safe Working Load is robust for equipment, this product is strictly designed for mounting cameras, sensors, and accessories. It must never be used to support human weight or for critical impact safety applications.
Join 500+ global brands trusting our vacuum technology. Get a factory-direct quote within 12 hours.
