The Concept
You Define the Interface.

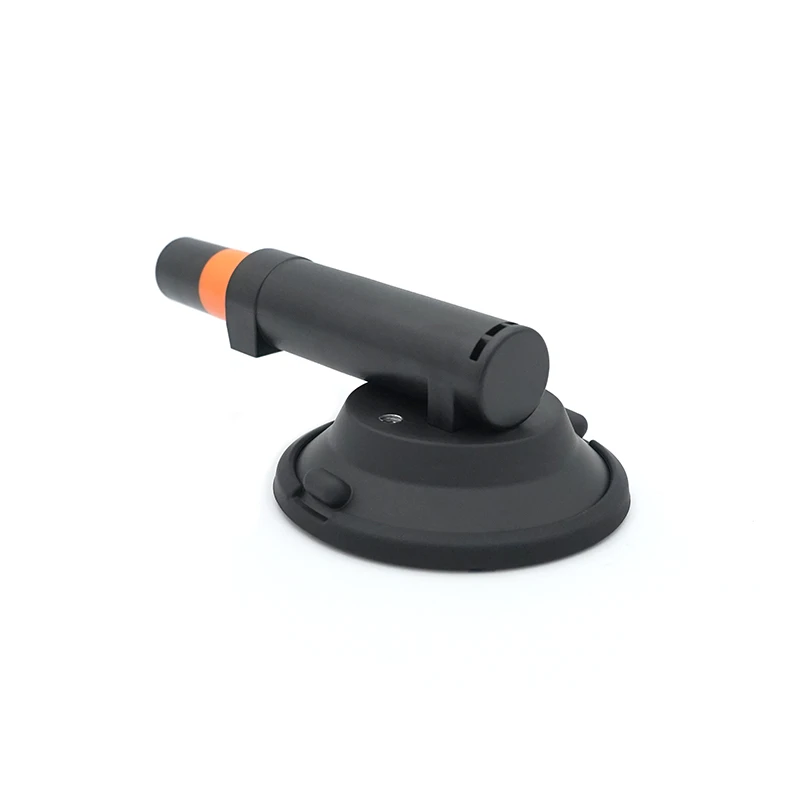

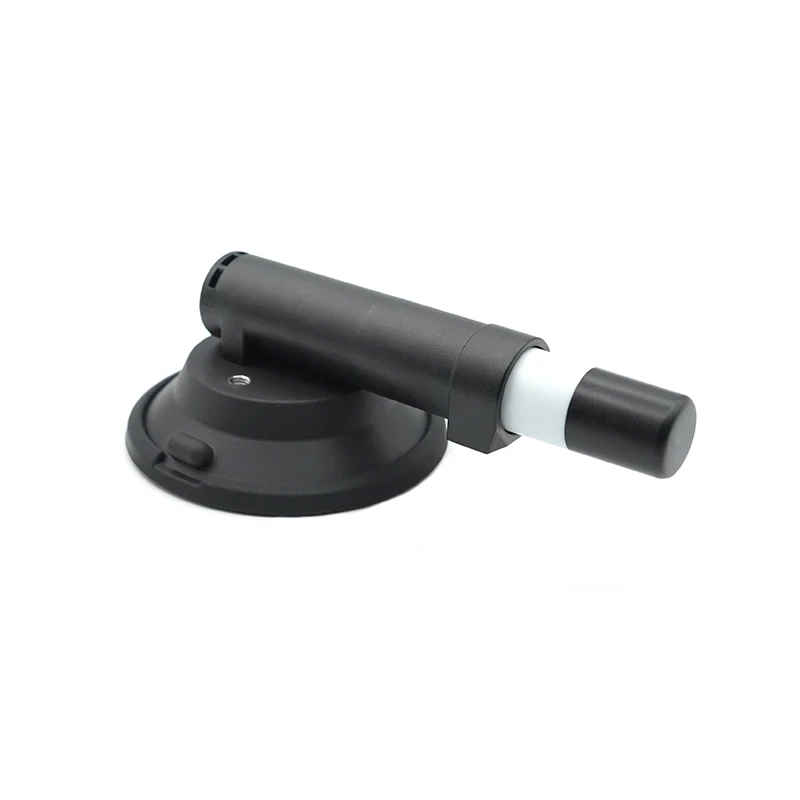

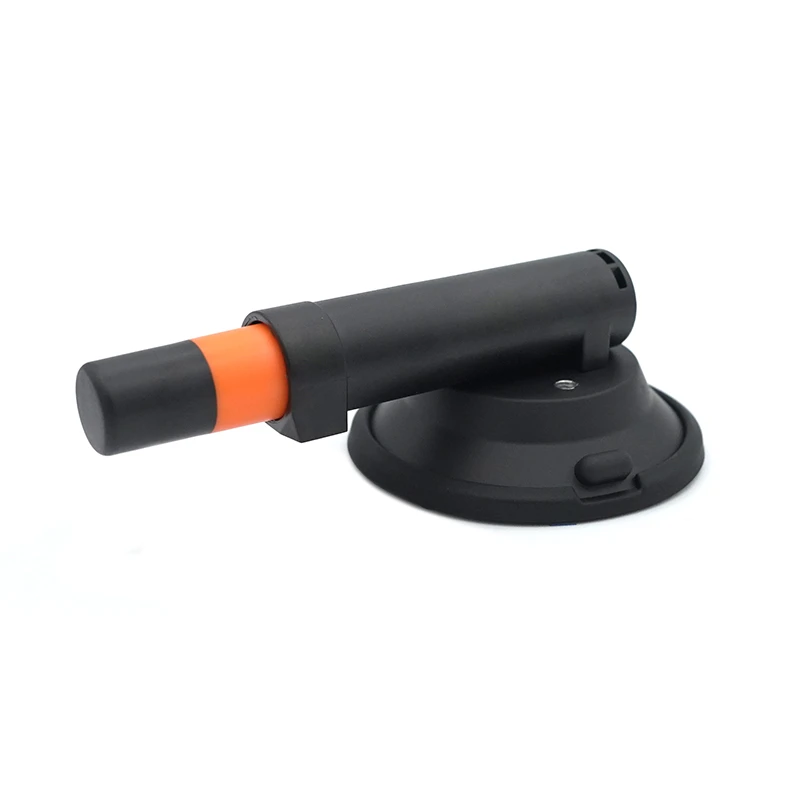

Standard mounts don’t always fit specific industrial needs. This 3-inch (75mm) vacuum base is engineered as a modular core—a high-performance “vacuum engine” ready for your unique application. Whether you need specific thread pitches (M6, M8), complex CNC-machined brackets for sensors, or specialized gimbals for cinema rigs, we offer full OEM (Original Equipment Manufacturer) customization to turn this base into your perfect solution.
Stop using adapters on top of adapters. We can manufacture the top mounting platform to your exact engineering drawings.
The Tech: A proven pneumatic system capable of a 20kg (44 lbs) Safe Working Load.
“It’s the rock-solid foundation that ensures your custom equipment stays exactly where you put it.”
The Tech: Operates from -30°C to 60°C and is fully submersible (underwater capable).
“From frozen testing chambers to underwater rigging, this base unit performs without compromise.”
Every OEM unit includes our standard safety protocol: a built-in check valve with a visual vacuum indicator. If the red line (or gray band) appears on the pump, it signals low pressure. This simple, fail-safe mechanism protects your custom equipment by giving operators an instant visual warning to re-pump before the seal is broken.
| Parameter | Specification / Option |
|---|---|

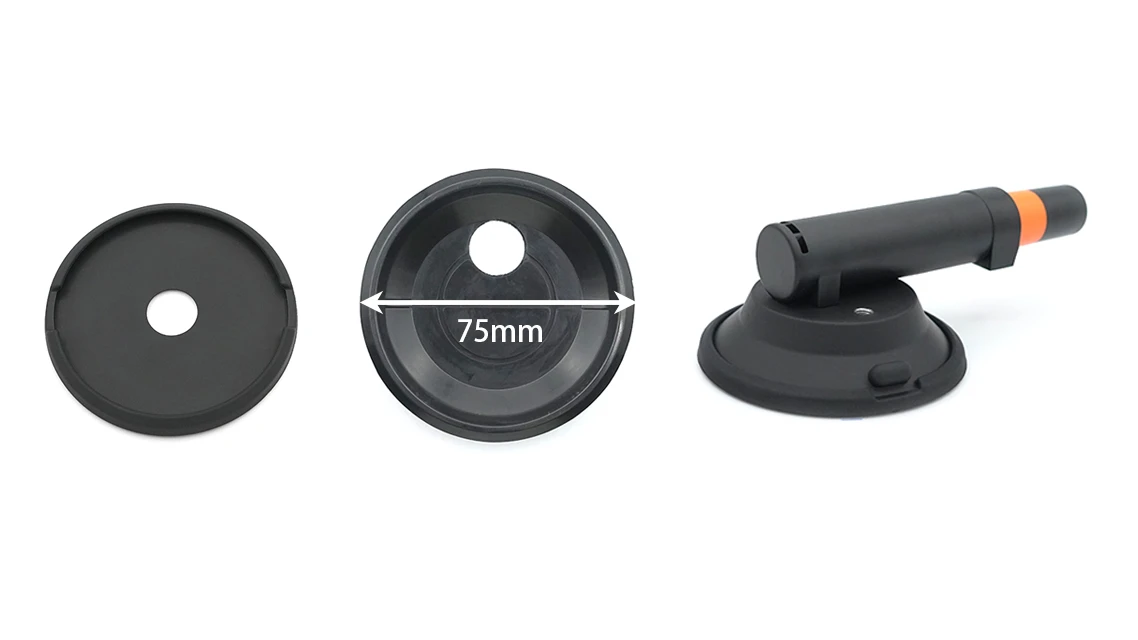

| Pad Diameter | 3 Inches (75 mm) |
| Safe Loading Capacity | 44 lbs (20 kg) [Safety Factor Applied] |
| Max Loading Capacity | 66 lbs (30 kg) [Break Point] |
| Pad Geometry Options | Flat (for glass/metal) or Concave (for slight curves) |
| Pump Material Options | Cost-Effective ABS or Heavy-Duty Metal |
A: Yes. This is the core purpose of this product line. We can modify the top aluminum mounting plate to include specific threads (like M6, M8) or unthreaded holes to match your device’s footprint exactly.
A: If your application is strictly on flat glass or polished stone, the Flat pad offers the highest rigidity. If you plan to mount on vehicle bodies, boat hulls, or curved industrial tanks, the Concave pad is required to accommodate the surface radius.
A: The vacuum seal itself holds perfectly underwater. However, visual monitoring of the red line can be difficult depending on water clarity and depth. For underwater use, we recommend ensuring a solid lock on the surface (dry if possible) before submersion.
