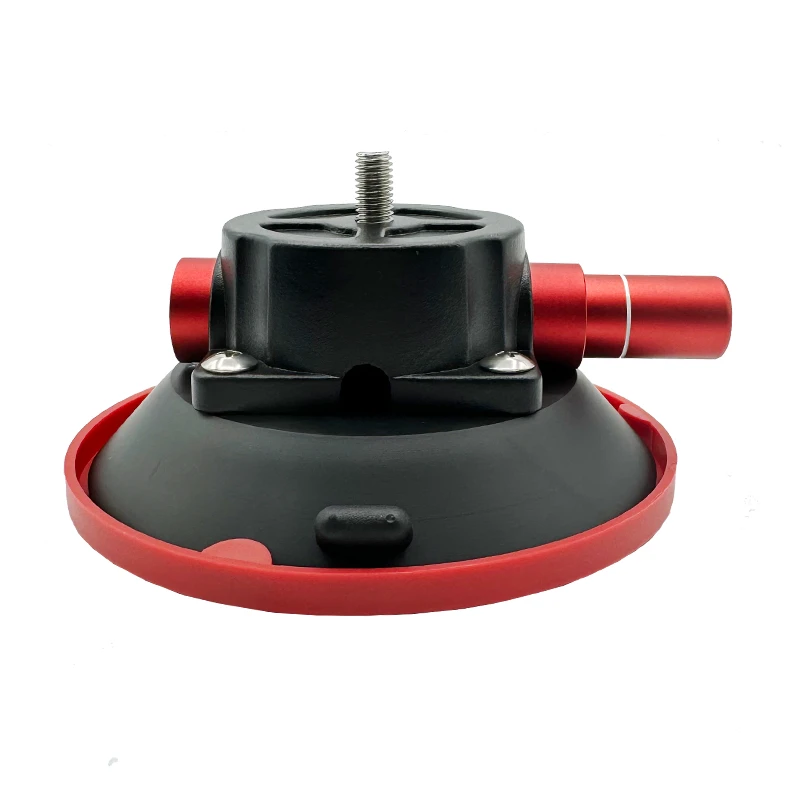

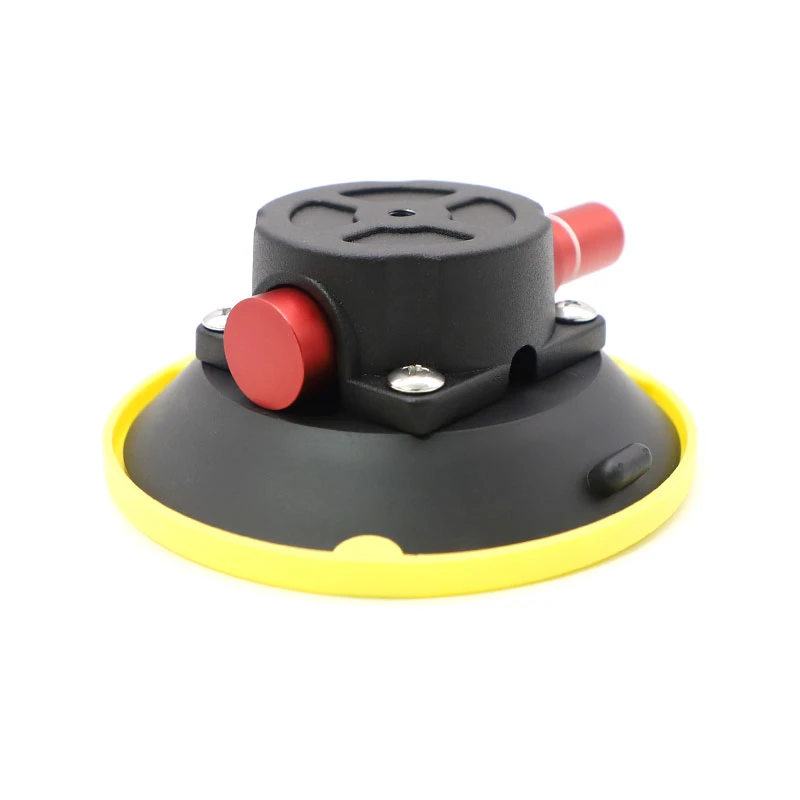

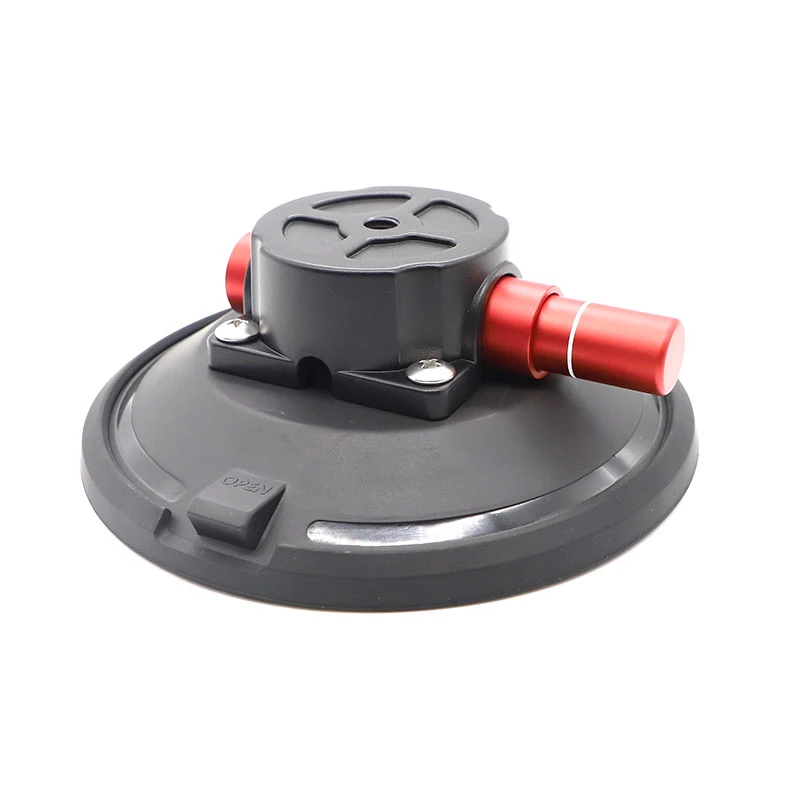

Professional grade vacuum suction cups with durable metal pumps. Available in 4.5″, 5″, and 6″ sizes. Reliable rigging solution for global wholesalers and OEM partners. Shop factory prices.
Stop relying on friction. By harnessing the physical weight of Earth’s atmosphere, our vacuum mounts create a rock-solid, non-damaging bond on glass, metal, and finished panels. From high-speed cinematic car chases to securing heavy industrial equipment, this is the “Industrial Safe” of mounting systems.
The Tech:
Every pump features a mechanical vacuum gauge. If the Indicator Line becomes visible, it signals a pressure drop before detachment occurs.
For You: It’s a “Check Engine Light” for your rig. You can visually verify safety from a distance without touching the equipment.
The Tech:
The rubber pad is made of specially formulated rubber materials, which has excellent resistance to high and low temperature and aging resistance, furthermore, No mark or trace will be left after sucking , effectively protecting the objects’ surface. The Metal Pump variant withstands temperatures up to 100°C (212°F) and offers 6x the lifecycle of standard pumps.
For You: Mount it on a black car hood in the desert sun. It won’t melt, deform, or lose suction.
Designed for the “Run and Gun” professional. The conical plunger design is frictionless and quiet, achieving a full vacuum seal in under 20 seconds.
The mounting block is a universal interface, compatible with M6, M8, 1/4″-20, and 3/8″-16 standards.
Perfect For: DJI Osmo / Cinema Cameras / LED Panels / Magic Arms
| Specification | 4.5″ Model (120mm) | 6″ Model (150mm) |
|---|---|---|
| Safe Load Capacity | 110 lbs (50 kg) | 154 lbs (70 kg) |
| Max Load (Break Strength) | 132 lbs (60 kg) | 198 lbs (90 kg) |
| Pump Material | Aluminum Alloy (Metal) | |
| Working Temp (Metal) | -30°C to 100°C | |
| Thread Compatibility | 1/4″-20, 3/8″-16, M6, M8 | |
Clean the surface. Place the mount and pump the plunger repeatedly until the safety Line is completely hidden inside the cylinder.
While shooting, glance at the pump. If the safety Line reappears, it means vacuum is dropping. Re-pump immediately to restore 100% hold.
Finished? Press the release tabs on the pad edge. The vacuum breaks instantly ( < 1 sec), leaving no marks on the surface.
Durability and Heat. The metal pump is engineered for professional environments, rated for over 50,000 cycles and capable of withstanding extreme heat (100°C) without plastic deformation.
Under ideal conditions on smooth glass, the seal can hold for up to 72 hours. However, for safety, especially with expensive camera gear, we recommend checking the Red Line indicator every 4 hours.
